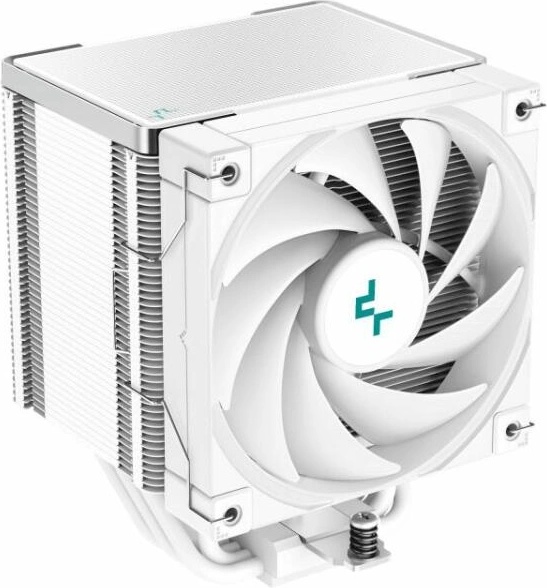

AK500 WH

The DeepCool AK500 WH is a high-performance single tower CPU cooler that maximizes cooling potential with a large heat sink, five advanced heat pipes, and a highly efficient 120mm FDB fan.





Prime Performance

Keep up with massive performance gains thanks to dominant cooling capacity from the AK500 WH boasting 240W of heat dissipation power to manage next generation processors. Tackle 4K gaming or high processing workloads knowing that your system is sufficiently cooled and performing at its peak.



Full DRAM Compatibility

The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.





Cool, Quiet, and Powerful

Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency. An optional low-speed adapter and extra fan clips are included for upgrades.





Simple and Secure

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.







Application For

Intel

LGA2066/2011-v3/2011/1700/1200/1151/ 1150/1155

AMD

AM5/AM4





Technical Spec:

Fan Air Pressure (with LSP)
1.2 mmAq

Fan Noise (with LSP)
≤25.9 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.12 A

Fan Power Consumption
1.44 W

Product Dimensions
127×117×158 mm

Heatsink Dimensions
127×90×158 mm

Net Weight
1040 g

Heatpipe
Ø6 mm×5 pcs

Fan Dimensions
120×120×25 mm

Fan Speed
500~1850 RPM±10%

Fan Airflow
68.99 CFM

Fan Air Pressure
2.19 mmAq

Fan Noise
≤31.5 dB(A)

Fan Speed (with LSP)
500~1550 RPM±10%

Fan Airflow (with LSP)
52.24 CFM
