Гаранция: 72 месеца
Тегло: 0.28 кг

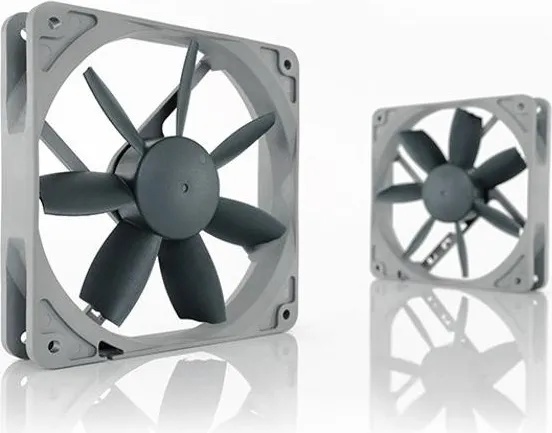

Specifically designed for low impedance case cooling applications, the classic NF-S12B is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-S12B premium fan. Its industry grade SSO bearing, over 150.000 hours MTBF rating and full 6 years manufacturer’s warranty make the NF-S12B redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1200rpm PWM version features Noctua’s proprietary NE-FD1 for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation.

Specifications

Size
120x120x25 mm

Connector
4-pin PWM

Bearing
SSO

Rotational Speed (+/- 10%)
1200 RPM

Min. Rotational Speed (PWM, +/-20%)
400 RPM

Airflow
100,6 m³/h

Acoustical Noise
18,1 dB(A)

Static Pressure
1,31 mm H 2 O

Max. Input Power
0,9 W

Max. Input Current
0,075 A

Voltage
12 V

MTBF
> 150.000 h

Scope of Delivery

• Fan
• 4 Fan Screws

Warranty
6 years

Details

Proven NF-S12B design
Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua’s classic NF-S12B. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-S12B has become an established reference for quiet 120mm fans.

Streamlined redux edition
The redux product line reissues some of Noctua’s most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua’s reputation as a first-tier supplier of premium grade low noise cooling equipment.

Designed for efficient case ventilation
Typical PC case ventilation applications require high airflow but only medium static pressure. The NF-S12B has been specifically designed for high airflow efficiency and low noise in order to provide best results in these so called low impedance applications.

Bevelled Blade Tips
Reducing critical rotor stator interaction, Bevelled Blade Tips permit to combine extended leading edges and a higher blade surface area with quieter operation and thus form a cornerstone of the fan’s outstanding efficiency.

Custom designed PWM IC with SCD
Supporting fully automatic speed control via PWM, the fan uses Noctua’s custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.

SSO-Bearing
Combining the proven concept of hydrodynamic bearings with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua’s time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.

Optional accessories
Users can choose from Noctua’s wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.

6 years manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTBF rating of more than 150.000 hours and come with a full 6 years manufacturer’s warranty.



Продукт известен още и като NF S 12 B redux 700, NFS12Bredux700, NF S12B redux 700, NF-S12Bredux-700, NF S12B redux-700, NF-S12B redux 700
